System F2DFC – Drywall Bead Flange Access Panel | Removable | Drywall Inlay | Touch Latches

Panel Highlights:

  • Ceiling Use Only
  • Removable
  • Non-Rated
  • Installs from the front and screws in to the framing
  • Drywall Bead Flange
  • Drywall Inlay of 5/8″  that works for all drywall thicknesses
  • Ready-To-Paint Access Door for sizes under 24″
Loading...

Description

The access panel consists of a welded aluminum frame and is available with a 5/8″ (15.9 mm) drywall inlay and two latches. Both an outer and an inner frame assembly consists of high grade aluminum which is bonded with a special welding process.

For sizes 12” x 12” (305 mm x 305 mm) and up the access panels are equipped with a safety-system to prevent accidental opening. This safety system must be reattached if the hatch is removed. The reveal of 1/16 of an inch (1.59 mm) is visible between the outer frame and door hatch. The concealed snap locks open the access panel when pressure is applied to the spring loaded latch side.

For this panel since it installs from the front of the drywall inlay size does not matter.

Max Size: 24 X 48 or equivalent

Additional information

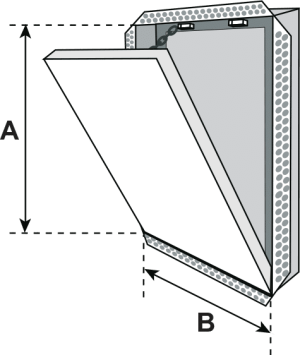

Product Sizes

8" X 8" (203mm X 203mm), 12" X 12" (305mm X 305mm), 16" X 16" (406mm X 406mm), 18" X 18" (457mm X 457mm), 20" X 20" (508mm X 508mm), 24" X 24" (610mm X 610mm), Custom Size

Lock Options

Z – Round Cylinder Lock with Key, H1 – Hex Head Cam Latch, P1 – Pinned Hex Head Cam Latch, SD1 – Screwdriver Operated Cam Latch, SN – Touch Latches (Standard)
