Product Description

The Howe Green 2500 Series Floor Access Covers are suitable for all types of timber floors – up to 22mm solid hardwood floors, timber strip and heavy-duty laminate flooring to enable permanent, safe access to services concealed underneath.

The 2500 Series is a Stainless Steel Single Access Cover Trim available for use in wood flooring areas. Manufactured in the UK, all covers are made to your exact specification.

FEATURES / BENEFITS

Made to your specification between stated maximum and minimum sizes, with no time or cost constraint.

Quick and easy to install ensuring minimum disruption.

Fits within the thickness of a standard timber floor, removing the need to cut rebates into whatever is underneath the timber flooring.

Provides easy, permanent access to underfloor services using lifting keys.

Screwed sideways into the floor to allow movement with a floating timber floor.

TYPICAL FLOOR FINISHES

All types of timber floors – up to 22mm solid hardwood floors, timber strip flooring, heavy-duty laminate flooring.

PERFORMANCE

Light-duty, suitable for pedestrian traffic, including wheeled trolleys and sack trucks

SUITABILITY

Commercial buildings, educational institutions, civic and public buildings subject to pedestrian footfall traffic where permanent access to underfloor facilities and services is required.

MANUFACTURED TO REQUIREMENT

We manufacture Floor Access Covers, Edge Trims and Corner Guards quickly and easily to your exact size/configuration or special purpose requirements using CAD and C.N.C machinery at our manufacturing facility in Ware, Hertfordshire.

PERFORMANCE STANDARDS HOWE GREEN | 2500 SERIES

SUITABILITY Wooden floors
LOADING pedestrian traffic, including trolleys / sack trucks
WEIGHT 16 kg/m²
Specifications
Model
BNT/BNW/BNP
Door
BNT/BNW: 16 gauge Steel (removable) or 16 gauge Type 304 Stainless Steel
BNP: 14 gauge Steel or 16 gauge Type 304 Stainless Steel
Frame
16 gauge Steel or 16 gauge Type 304 Stainless Steel
Size
Minimum: 6 inches by 6 inches
Maximum: 24 inches by 72 inches or 48 inches by 48 inches
Installation
Wall or Ceiling
Flange
1 inch exposed, Drywall Bead or Plaster Bead
Latch
Screwdriver Cam Latch, Key Operated Cam Latch, or Mortise Lock (1-1/8 inch) Prep
Hinge
Concealed spring button
Pan Depth
½ inch
Finish
White Powder Coat (steel) or #4 Satin (stainless steel)
Options
Flanges, Latches, Materials, Gaskets, Anchors
Warranty
1 year

Need additional help? Below you will find installation instructions and installation videos

Product Brochure:
Product Datasheet:
Installation Guide:
Looking for measurements to plan for your project? See below for what you need.

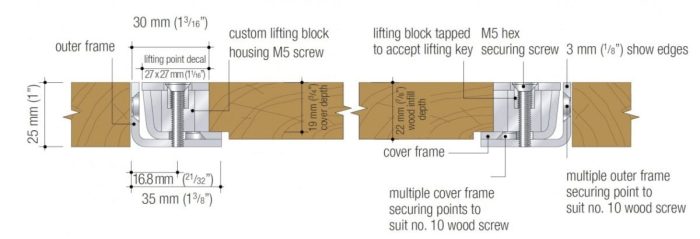

serie_2500_cross_section-1-1200x410
